Drone Survey Positioning: GPS vs RTK/PPK vs GCPs Explained

Last month a contractor called me about a 40-acre grading verification project. He’d hired a drone operator who set 12 ground control points, surveyed each one with a rover, flew an RTK drone, post-processed with checkpoints, and delivered a surface model accurate to 0.8 inches vertical. Professional work. Also $4,200 and two full field days.

The project spec? Confirm rough grading to within 0.3 feet of design. That’s 3.6 inches. A single RTK flight with zero GCPs would have hit that tolerance in three hours for under $800.

The operator didn’t do anything wrong technically. He did the wrong tier of work for the project. And he’s not alone — most drone mapping content treats ground control points as mandatory for every job. They’re not. Positioning accuracy is a spectrum, and the professional move is matching your tier to the project requirement. Not over-engineering. Not under-delivering.

Here’s the framework.

The 4 Tiers of Drone Survey Positioning

Every drone survey falls into one of four positioning tiers. Each tier has a cost, a time footprint, and an accuracy ceiling. The goal is to pick the lowest tier that meets or exceeds the project specification.

Those cost estimates assume a single operator with existing equipment. Your numbers will vary by region, but the ratios hold.

Tier 1: Consumer GPS Only (3–10 ft)

Your drone’s built-in GNSS receiver — the one that ships with every DJI Mini, Air, or Mavic consumer platform — geotags images using single-frequency, code-based positioning. No corrections. No differential computation. Just raw satellite fixes.

Accuracy: 1 to 3 meters horizontal, 3 to 5 meters vertical on a clear day with good satellite geometry. On a bad day — urban canyon, tree canopy, or poor constellation visibility — you’ll see 5 to 10 meters. The images are internally consistent (relative accuracy is fine for photogrammetry), but the entire model floats in geographic space by whatever error the GPS receiver introduced.

When Tier 1 is enough:

• Visual inspection and marketing. Roof condition assessments, real estate photography, construction progress photos where no measurement is taken from the map.
• Vegetation monitoring at field scale. Crop health comparisons over time — you’re looking at relative changes across the same site, not absolute positions.
• Volumetric estimates where 5–10% tolerance is acceptable. Stockpile volumes for inventory planning, not invoicing. A 3-meter shift doesn’t change volume significantly on a large pile.
• Preliminary site reconnaissance. Quick orthomosaic to plan where you’ll put GCPs on the next visit.

When Tier 1 fails: Any project where you measure distances, areas, or elevations from the deliverable and someone makes a decision based on those numbers. If a client overlays your orthomosaic on a CAD drawing and finds a 6-foot shift, you have a credibility problem — not an accuracy problem.

Cost reality: Consumer drones run $300 to $1,500. No subscription. No base station. No post-processing beyond the photogrammetry software you already own. This is the cheapest tier by a wide margin.

Tier 2: RTK/PPK Without GCPs (1–2 inches)

This is where most professionals live — and where the most heated debates happen.

An RTK or PPK drone corrects the antenna position using carrier-phase differential GNSS. RTK streams corrections in real time via cellular or radio link. PPK logs raw observations and processes them after the flight. Both achieve the same positional accuracy: 1 to 3 centimeters horizontal, 2 to 5 centimeters vertical under good conditions. For a deeper comparison, see RTK vs PPK Drone Mapping: Which Should You Use?.

Without GCPs, you’re trusting that corrected antenna position entirely. No ground truth. No independent validation. The model is anchored to the drone’s corrected position — which is excellent — but unverified.

The real-world accuracy: Published tests put RTK/PPK-only results in the low centimeters, with a caveat about height. Taddia et al. (2020, Drones) flew a Phantom 4 RTK in PPK mode over a coastal dune with no GCPs and measured 1.3 cm east, 1.2 cm north and 2.2 cm vertical checkpoint RMSE — but on a double-grid flight with a tilted camera. Moyo and Kačmařík (2025, Geographia Technica) measured 4.0 to 4.1 cm horizontal and 4.3 to 6.5 cm vertical RMSE on RTK-only Mavic 3 Enterprise flights at two sites. Przybilla et al. (2020, ISPRS Archives) saw Phantom 4 RTK checkpoint deviations under 4 cm (the paper’s “cadastral accuracy” threshold) without GCPs on nadir and 45° flights over a 6,000 m² reference point field, yet concluded that “datum definition without at least one GCP does not lead to acceptable results.” At their Zeche Zollern test field, RTK-only flights showed height deviations well over 10 cm, and the authors summarise flights without any GCPs as showing height errors of up to 30 GSD.

That’s 1 to 2 inches when the RTK solution and the flight geometry are good. For a huge range of projects, that’s enough.

When Tier 2 is enough:

• Construction progress monitoring. Grading verification against a 0.3-foot (3.6-inch) tolerance — Tier 2’s 1 to 2 inches meets it with margin if your RTK solution is clean. Against a 0.1-foot (1.2-inch) tolerance, Tier 2 is marginal at best; step up to Tier 3, and because Tier 3 vertical (about 1 to 1.5 inches) is itself close to 0.1 ft, prove it with independent checkpoints (Tier 4) when the tolerance applies to elevations.
• Agriculture — drainage planning, field leveling. Sub-inch vertical isn’t required. Two-inch accuracy maps water flow direction accurately.
• Mining and aggregate — volumetric calculations for billing. Most operators bill to the nearest cubic yard on stockpiles measured monthly. Two-inch vertical accuracy on a 10,000 CY pile introduces less than 1% volume error.
• Environmental site assessment. Wetland delineation, erosion monitoring, habitat mapping — all work at the 2-inch level.
• Pre-construction topographic surveys where the civil engineer uses the data for preliminary design, not final stake-out.

When Tier 2 fails: When you need to prove accuracy to a third party. No checkpoints means no independent validation. If a surveyor, engineer, or regulator asks “how do you know this is accurate?” — you point at your RTK fix status and hope they accept it. Most professional standards don’t.

ASPRS Positional Accuracy Standards (Edition 2, 2023) require independent checkpoint validation for any published accuracy claim. USACE EM 1110-1-1000 requires GCPs and independent QC points for photogrammetric mapping used in engineering design. Without checkpoints, your accuracy is assumed — not demonstrated.

Cost reality: RTK drones run $5,000 to $20,000. NTRIP subscriptions cost $40 to $300 per month depending on provider and coverage. If you own a base station for PPK, the ongoing cost is zero after the initial $2,000 to $5,000 investment. Field time is minimal — fly and go.

Tier 3: GCPs With Survey-Grade Measurement (Sub-inch Horizontal)

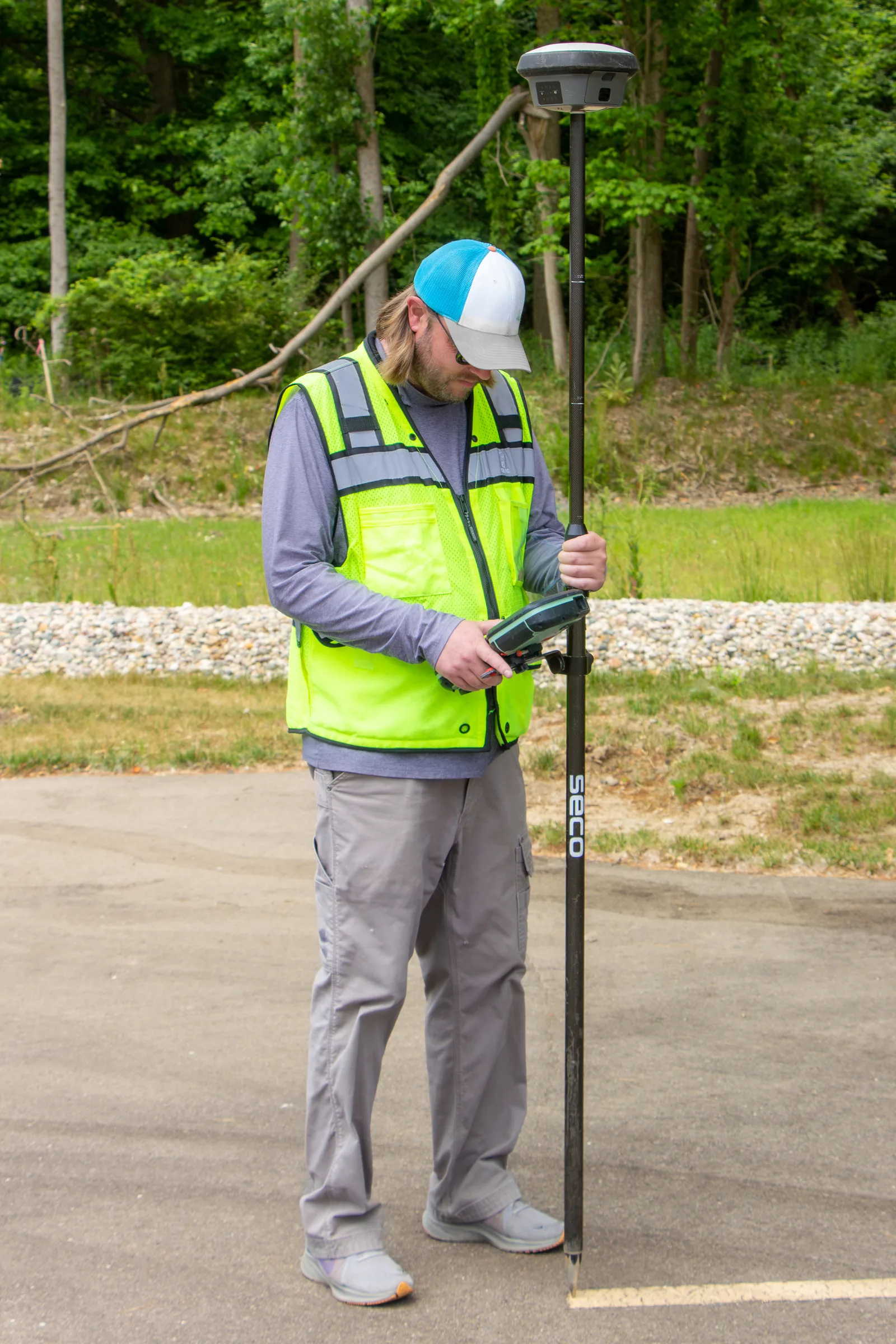

Jacob Wysko (SweetCanadianMullet), via Wikimedia Commons, CC BY 4.0

Add ground control points surveyed with an RTK rover or total station, and you constrain the photogrammetric bundle adjustment to known ground coordinates. The model stops floating. Systematic errors — base station misplacement, antenna offset, atmospheric delay — get absorbed by the adjustment.

The accuracy jump: The gain from ground control shows up mostly in the vertical axis, where systematic errors accumulate. In Taddia et al.’s (2020) nadir-only PPK flights, a single GCP left vertical RMSE around 5 cm; a well-distributed set of GCPs brought 3D RMSE down to 3.4 cm, with no vertical checkpoint residual above about 4 cm. Moyo and Kačmařík (2025) saw the same pattern on flat ground: 6.5 cm vertical RMSE RTK-only, almost all of it a systematic offset, versus 1.8 cm with GCPs. Sanz-Ablanedo et al. (2018, Remote Sensing) tested 3,465 GCP combinations on a 1,200-hectare site and found that a few GCPs are not enough: with sparse control, checkpoint RMSE ran about 5× the GSD, and only with dense, evenly spread control did it converge toward about 2× the GSD. Put together, a well-controlled Tier 3 job on flat to moderate terrain typically lands around 1 to 2 cm horizontal (sub-inch) and 2 to 4 cm vertical (about 1 to 1.5 inches) RMSE.

Distribution matters as much as count. For the same number of GCPs, Sanz-Ablanedo et al. found an even spread roughly twice as accurate as a poor layout. Five GCPs spread across the perimeter and one in the center outperform twelve clustered in one corner. For details on GCP placement strategy, see Ground Control Points for Drone Surveys: How Many, Where, and Why.

When Tier 3 is enough:

• Design-grade topographic surveys. Civil engineers using your surface model for earthwork calculations, drainage design, or grading plans.
• Boundary and area measurement where the client uses your map to verify fence lines, setbacks, or acreage for transactions.
• Permit-required surveys. Many municipal and state agencies require GCP-constrained drone deliverables for floodplain, stormwater, or land disturbance permits.
• Any project where someone else validates your work. A surveyor reviewing your deliverable will look for GCPs in the report. No GCPs, no credibility.

When Tier 3 falls short: When the deliverable is legally binding, when a formal accuracy statement under the ASPRS standards is required, or when the project demands documented, independent validation — not just GCP fit statistics. Tier 3 proves your model fits your own control. It doesn’t prove real-world accuracy unless you withhold some points as independent checks.

Cost reality: Add 1 to 3 hours of field time for GCP placement and survey. A survey-grade RTK rover (Emlid RS3 at $2,999, Trimble R12i at $15,000+) is required for the ground measurement. If you’re subcontracting the survey, expect $500 to $1,500 per mobilization depending on site size and number of points.

Tier 4: RTK/PPK + GCPs + Independent Checkpoints (Maximum Defensible)

This is the full stack. You fly RTK or PPK for corrected camera positions. You set GCPs for bundle adjustment constraint. And you place additional survey points — checkpoints — that you deliberately withhold from processing. After the model is built, you compare your drone-derived coordinates at those checkpoint locations against the surveyed ground truth.

That comparison produces your real-world accuracy number. Not the software’s internal fit. Not your RTK fix quality. The actual, independently validated, defensible accuracy of the deliverable.

The numbers: Tier 4 is not more accurate than Tier 3. The ground control sets the accuracy ceiling in both; RTK/PPK camera positions add robustness and let you get away with fewer GCPs, but they don’t push the result past what good GCPs already deliver. Expect the same roughly 1 to 2 cm horizontal and 2 to 4 cm vertical RMSE on flat to moderate terrain: sub-inch horizontally and about 1 to 1.5 inches vertically. What makes it Tier 4 is that the number is demonstrated by independent checkpoints withheld from processing, not assumed from GCP fit statistics.

How many checkpoints? ASPRS Edition 2 sets the minimum at 30 independent checkpoints for a fully compliant accuracy test, scaling up to a cap of 120 for very large project areas (the standard keys checkpoint count to project area in km², not acres, so almost every drone site needs 30). Testing with fewer is allowed, but the accuracy statement must then say the test used “ONLY __ checkpoints” (Edition 2, Version 2, 2024, Section 7.16). A handful of checkpoints is still a useful check on a small private job; budget for 30 when the deliverable must be ASPRS-compliant. USACE requires independent QC points on any photogrammetric mapping deliverable used for engineering design or construction.

When Tier 4 is required:

• Legal surveys and boundary work where the deliverable may be entered as evidence.
• Accuracy reports tested and stated to the ASPRS standards for government contracts, FEMA floodplain mapping, or DOT projects. ASPRS defines how to test and report accuracy, and Edition 2 says such reports should be “reviewed and sealed by an ASPRS-certified photogrammetrist.” In other words, as we read it, the standard doesn’t certify datasets; the certification it leans on is of people.
• USACE engineering design — dams, levees, channels, anything where lives depend on the survey.
• Cadastral and land title work in jurisdictions that accept photogrammetric deliverables.
• Any project where “how do you know?” requires a number, not a narrative.

When Tier 4 is overkill: Construction progress monitoring to 0.3-foot tolerance. Agricultural surveys. Volumetric estimates. Marketing imagery. Site reconnaissance. Most private-sector commercial drone work.

Cost reality: Full mobilization including RTK flight, GCP placement, survey of GCPs and checkpoints, post-processing, and accuracy report generation. Budget 6 to 8 hours of field time and 2 to 4 hours of office time per project. This is the most expensive tier — but it’s the only one that produces a legally defensible accuracy statement.

The Decision Flowchart

Start with the project specification. Not your equipment. Not your comfort level. The spec.

Step 1: What accuracy does the project require?

• No measurement from the deliverable — Tier 1
• Measurement tolerance of 0.3 ft (3.6 in) or looser — Tier 2
• Tolerance tighter than 0.3 ft, down to about 0.1 ft (1.2 in), or engineering design use — Tier 3 (for a 0.1 ft vertical tolerance, add checkpoints: Tier 4)
• Legal, regulatory, or a formal ASPRS accuracy statement — Tier 4

Step 2: Does anyone need to independently validate accuracy?

• No — stay at your current tier
• Yes — move to Tier 3 minimum, Tier 4 if a formal, checkpoint-tested accuracy statement is required

Step 3: What are the consequences of being wrong?

• Redo the flight — Tier 1 or 2
• Redo the design — Tier 3
• Litigation, permit denial, or safety failure — Tier 4

If two steps point to different tiers, go with the higher one. You can always downgrade on the next project. You can’t upgrade a deliverable after the fact — once you’ve left the site without GCPs, the data is what it is.

When to Upgrade Tiers

The most common mistake is locking into one tier and applying it to every project. The second most common mistake is never upgrading when the project demands it.

Upgrade from Tier 1 to Tier 2 when you start measuring from the deliverable — distances, areas, volumes, elevations. Consumer GPS accuracy means your measurements carry 1–3 meters of embedded error. That’s fine for relative comparison. It’s not fine for billing or design.

Upgrade from Tier 2 to Tier 3 when the deliverable goes to a licensed professional — surveyor, engineer, architect — who will use it in their work product. They need to see GCPs in your processing report. They need to know the model was constrained to ground truth, not just corrected antenna positions.

Upgrade from Tier 3 to Tier 4 when the deliverable is the record of truth. Legal proceedings, regulatory submittals, FEMA mapping, DOT design. If someone can challenge your accuracy claim and the consequence is more than a redo flight, you need checkpoints.

Downgrade when the project doesn’t need it. Running Tier 4 on a monthly stockpile volume check is a $3,000 solution to a $500 problem. The professional move is knowing when less is enough.

The Real Cost of Getting the Tier Wrong

Over-engineering costs time and money. Under-engineering costs credibility and potentially your client relationship.

I’ve seen both. An operator running Tier 4 on every job regardless of spec — burning 8 hours in the field on sites that needed 3. His per-project margin was thin because he was treating stockpile monitoring like FEMA mapping. Good work. Wrong tier.

I’ve also seen an operator deliver a Tier 2 product on a project that needed Tier 3. The civil engineer overlaid the drone surface on his design and found a 4-centimeter systematic vertical shift — well within Tier 2 spec, but outside the design tolerance. The entire surface had to be re-flown with GCPs. The client didn’t call back.

The framework is simple: read the spec, pick the tier, execute it well. If there’s no written spec, ask the client what they’re using the deliverable for — then pick the tier that matches the use case.

To put it plainly: accuracy isn’t a single standard you always hit. It’s a range you select based on the job. The professional knows all four tiers and deploys the right one.

Not every drone survey needs ground control points. Not every project justifies RTK hardware. And not every client needs accuracy proven by independent checkpoint validation.

Most commercial drone work lives in Tier 2 — RTK or PPK without GCPs, 1 to 2 inches, fast and cost-effective. Tier 3 adds GCPs when the deliverable goes to an engineer or meets a regulatory requirement. Tier 4 is the full stack for legal work and formal accuracy statements.

The framework isn’t about cutting corners. It’s about matching the tool to the job. A Tier 2 survey executed well on the right project is more professional than a Tier 4 survey sold to a client who didn’t need it.

Know your tiers. Read the spec. Deliver accordingly.

For more on positioning methods, see RTK vs PPK Drone Mapping: Which Should You Use?. For GCP strategy and placement, see Ground Control Points for Drone Surveys. For understanding accuracy metrics, see Drone Survey Accuracy: What the Numbers Actually Mean.

References

Research and standards cited in this article.

• ASPRS. (2024). ASPRS positional accuracy standards for digital geospatial data (Edition 2, Version 2.0). American Society for Photogrammetry and Remote Sensing. doi:10.14358/ASPRS.PAS.2024
• Moyo, V., & Kačmařík, M. (2025). A comparative evaluation of georeferencing techniques in UAV photogrammetry: A case study from the Czech Republic. Geographia Technica, 20(2), 205–217. doi:10.21163/gt_2025.202.13
• Przybilla, H.-J., et al. (2020). Interaction between direct georeferencing, control point configuration and camera self-calibration for RTK-based UAV photogrammetry. International Archives of the Photogrammetry, Remote Sensing and Spatial Information Sciences, XLIII-B1-2020, 485–492. doi:10.5194/isprs-archives-XLIII-B1-2020-485-2020
• Sanz-Ablanedo, E., et al. (2018). Accuracy of unmanned aerial vehicle (UAV) and SfM photogrammetry survey as a function of the number and location of ground control points used. Remote Sensing, 10(10), 1606. doi:10.3390/rs10101606
• Taddia, Y., Stecchi, F., & Pellegrinelli, A. (2020). Coastal mapping using DJI Phantom 4 RTK in post-processing kinematic mode. Drones, 4(2), 9. doi:10.3390/drones4020009
