Best Consumer Drones for Mapping in 2026

You want to map with a consumer drone. Not a Matrice 350 with a P1 payload. Not an eBee with a survey-grade GNSS receiver. A sub-250-gram drone that fits in a jacket pocket and costs under $1,200.

Here’s the question nobody answers honestly: can these drones produce usable mapping data? Yes. With constraints. Across real mapping jobs these platforms cover — property boundaries, small construction sites, agricultural assessments — results range from surprisingly good to frustratingly inconsistent depending on how they’re flown and what accuracy is actually required.

This guide covers three drones worth considering for mapping in 2026: the DJI Mini 4 Pro, the DJI Mini 3 Pro, and the Autel Evo Nano+. I’ll give you the specs that matter for photogrammetry, the ones that don’t, and an honest verdict on each.

Why Sub-250g Matters for Mapping

Weight class is a regulatory boundary, not just a spec sheet number.

In the United States, the 250-gram line mostly matters to recreational flyers. A drone that weighs 0.55 lb (250 g) or less and is flown only for recreation needs no FAA registration (14 CFR 48.15), which also takes it outside the Remote ID rule (14 CFR 89.101).

Mapping for a client is not recreation. Under Part 107, the drone must be registered whatever it weighs (14 CFR 107.13), and every registered drone must broadcast Remote ID (14 CFR 89.105), either built in (Standard Remote ID) or through a broadcast module. The only exceptions are flights inside an FAA-recognized identification area (FRIA, 14 CFR 89.115(b)) and flights the FAA authorizes solely for aeronautical research or to show compliance with regulations (14 CFR 89.120). One catch for Mini 4 Pro owners: DJI’s firmware broadcasts Remote ID only when the heavier Intelligent Flight Battery Plus is fitted, which takes the aircraft over 250 g. On the standard battery, a commercial flight needs a broadcast module. Weight doesn’t change LAANC airspace authorizations either.

On paper, the weight class could also open Category 1 operations over people to a Part 107 pilot. 14 CFR 107.110 allows flight over people with a drone that weighs 0.55 lb or less on takeoff and throughout the flight, including everything on board or attached, and has no exposed rotating parts that would lacerate human skin. In practice, none of the three drones in this guide qualifies. All three fly with exposed, unguarded propellers. On the Mini 4 Pro, the Remote ID a commercial flight needs also breaks the weight limit, because it takes either the Plus battery or an attached broadcast module.

Some local rules for parks and other restricted areas define drones by weight class, so check how each one treats sub-250g aircraft. Many don’t distinguish at all: the National Park Service, for example, bans launching or landing any drone in park units regardless of weight.

For mapping professionals, the rest of the advantage is practical rather than regulatory. A small drone is easier to carry onto a site, draws less attention, and is less intimidating to people on the ground, which can make a client more comfortable approving a quick orthomosaic. It does not get you around airspace rules: controlled airspace, TFRs, and restrictions over security-sensitive facilities apply at any weight.

The Specs That Actually Matter for Mapping

Before comparing these three drones, you need to know which specifications affect mapping quality and which are marketing noise.

Sensor size and resolution. Larger sensors capture more light per pixel, producing cleaner imagery with less noise. For photogrammetry, this means better feature matching in shadow areas and more reliable tie points. All three of these drones use 1/1.3-inch sensors — adequate for mapping, not exceptional.

Rolling shutter vs. mechanical shutter. This is the single biggest quality differentiator for mapping. Rolling shutter sensors read the image line by line from top to bottom. If the drone is moving during capture — and it always is — each line of the image is exposed at a slightly different position. That produces geometric distortion that degrades your point cloud accuracy. Mechanical and global shutters expose the entire frame at once, so there is no rolling-shutter distortion. (Motion blur still depends on exposure time with any shutter.)

To put it plainly: rolling shutter costs you 1-3 centimeters of accuracy in photogrammetric processing unless your software compensates for it and your flight speed is slow enough to minimize the effect.

GPS accuracy. Consumer drones use single-frequency L1 GNSS — no RTK, no PPK, no multi-frequency corrections. Standalone GPS accuracy is 2-5 meters horizontal. That’s your geotag accuracy before processing. With sufficient GCPs (5-8 well-distributed ground control points), you can achieve 3-10 centimeter accuracy in your final deliverables regardless of geotag quality. Without GCPs, you’re working with meter-level absolute accuracy.

Wind resistance. Mapping requires consistent altitude and overlap. Wind degrades both. A drone rated for Level 5 winds (18-24 mph, 8.1-10.6 m/s) will maintain altitude better than one rated for Level 4, producing more consistent GSD across the dataset.

Battery life. Mapping missions burn battery faster than casual flying. Continuous photo capture, sustained forward flight, GPS logging — expect 60-75% of the advertised flight time on a mapping mission. A 34-minute advertised battery gives you roughly 22-25 minutes of usable mapping time.

Head-to-Head Comparison

Mini 4 Pro prices are DJI’s US store list prices; in October 2026 the store showed every Mini 4 Pro package out of stock. DJI doesn’t sell a drone-only Mini 4 Pro in the US: the $759 base kit includes the RC-N2. Watch the controller if you plan to map with third-party apps. The Litchi Pilot and Dronelink apps run only with the RC-N2 or RC-N3 on the Mini 4 Pro, so the Fly More Combo’s DJI RC 2 screen controller can’t run them. Dronelink still works around this: you can plan in its web planner and export the mission as a DJI waypoint KMZ that DJI Fly flies on any controller, including the RC 2, on Dronelink plans that include KMZ export. The Mini 3 Pro is discontinued, so expect to buy remaining stock or a used unit.

GSD Reality Check

Ground Sample Distance — the real-world size of each pixel — determines what you can resolve in your maps. Run the numbers for any drone and altitude with the GSD calculator. Here’s what these drones produce at common mapping altitudes, using the 12MP effective resolution in standard photo mode:

All three drones produce nearly identical GSD at equivalent altitudes — the sensor sizes and focal lengths are close enough that the difference is sub-millimeter per pixel.

The practical constraint isn’t GSD. It’s coverage. At 60 meters altitude with 80% frontal overlap and 70% side overlap, a single battery covers roughly 8-12 acres on the Mini 4 Pro and Mini 3 Pro, and 5-8 acres on the Evo Nano+ due to shorter battery life. For larger sites, you’re swapping batteries. Budget three batteries minimum for any mapping job.

DJI Mini 4 Pro: The Current Best Option

The Mini 4 Pro is the drone I’d hand to someone who asked “which consumer drone should I buy for mapping?” without any other context.

What works for mapping. OcuSync 4.0 gives you rock-solid video transmission at distances you’ll never need for mapping but that translates to zero dropouts at survey altitudes. Omnidirectional obstacle avoidance means the drone handles low-altitude mapping flights near structures without you babysitting collision alerts. DJI’s waypoint mission system — built into DJI Fly — handles basic grid patterns for photogrammetric flights. Third-party apps like Litchi Pilot and DroneLink provide full automated mapping mission support with configurable overlap, altitude, and camera trigger intervals.

The 34-minute battery translates to about 23-25 minutes of mapping time. That’s workable. Not generous, but workable.

What limits it for mapping. Rolling shutter. Every image captured while the drone is in motion carries geometric distortion. At 11 mph (5 m/s) flight speed and a 1/1000s shutter, the drone moves about 5 mm during each exposure, which shows up as motion blur. The rolling-shutter readout takes much longer than that exposure, so the skew between the top and bottom of the frame is larger (see the rolling-shutter section below). Photogrammetry software (Metashape, Pix4D, WebODM) can model and partially correct this, but it introduces noise into your bundle adjustment. Fly slower (7 mph, 3 m/s) or force a faster shutter speed to minimize the effect.

Single-frequency GPS geotags are 2-5 meters accurate. You need GCPs for anything beyond rough area estimates. This isn’t a limitation unique to the Mini 4 Pro — it’s universal across consumer drones.

No native DJI mapping app. DJI Fly’s waypoint mode works but wasn’t designed for photogrammetric missions. You’ll want Litchi Pilot (the Mini 4 Pro-compatible app from the Litchi developer) or DroneLink ($0-30/month) for proper grid planning with overlap controls.

A note on the Mini 5 Pro. DJI released the Mini 5 Pro, with a 1-inch sensor, in September 2025. DJI has not sold it through its US online store, so US buyers can get it only from third-party resellers, usually at higher prices and with warranty and repair tied to the region of sale. That’s why this guide still centers on the Mini 4 Pro for US operators.

Verdict. Of the three drones in this guide, the Mini 4 Pro is the most capable for mapping in 2026. It has the best transmission system and obstacle avoidance of the three, and it ties the Mini 3 Pro for the longest effective mapping time. The rolling shutter is the elephant in the room, but it’s the same elephant in every drone on this list. If you’re buying one consumer drone for mapping, this is the one.

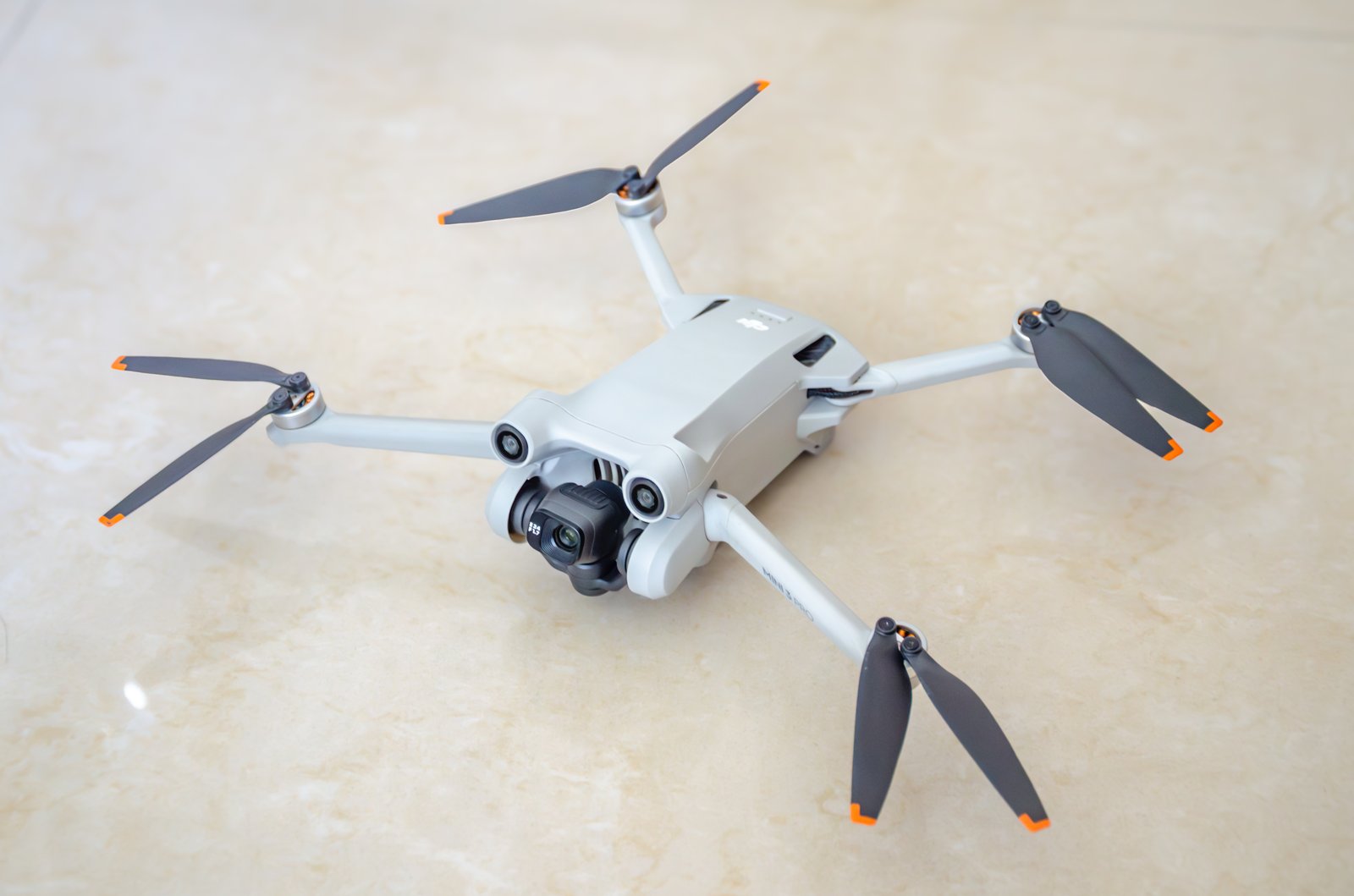

DJI Mini 3 Pro: The Budget-Conscious Pick

YikyuenG, via Wikimedia Commons, CC BY-SA 4.0

The Mini 3 Pro shares the same sensor as the Mini 4 Pro and still flies well in 2026. DJI has discontinued it (its US store already showed it out of stock in 2024, at a last list price of $599 with the RC-N1), so you’ll be buying remaining stock or a used unit. It’s cheaper, and for pure mapping work, the differences from the Mini 4 Pro are smaller than you’d expect.

What works for mapping. Same 1/1.3-inch sensor, same 48MP Quad Bayer array, same 12MP effective resolution for mapping photos. Same battery life. Same wind resistance rating. DJI Fly waypoints work identically. Litchi and DroneLink support is mature and reliable. The camera system produces the same GSD, same dynamic range, same RAW quality.

For a mapping-only workflow, the imagery from a Mini 3 Pro and Mini 4 Pro is functionally identical. Operators running both through Metashape side-by-side consistently report the same RMSE with the same GCP configuration. The sensor is the sensor.

What limits it for mapping. Tri-directional obstacle avoidance instead of omnidirectional — forward, backward, and downward sensors only; no upward or lateral coverage. This matters less for mapping (you’re flying forward in grid patterns) but makes low-altitude flights near structures riskier. If you clip a tree branch on a lateral pass, you’ll know.

OcuSync 3.0 versus 4.0 means shorter effective transmission range — 12 km versus 20 km. For mapping at survey altitudes (30-120m AGL), this difference is irrelevant. You’re never 12 km from your controller during a mapping mission.

The controller situation is where DJI got you. The Mini 3 Pro was sold with either the RC-N1 (phone-required) controller or the DJI RC (built-in screen). The built-in screen is tempting, but the DJI RC isn’t supported by DJI’s SDK, so it can’t run Litchi or DroneLink. DroneLink supports the Mini 3 Pro only with the RC-N1 or the RC Pro, on Android. For third-party grid missions, buy the RC-N1 version and solve the sunlight problem with a tablet mount and sun shade (see the accessories section below).

Verdict. The Mini 3 Pro is the value play. Save $150-200 compared to the Mini 4 Pro and get identical mapping imagery. The obstacle avoidance downgrade is the only meaningful mapping difference. If you’re flying open areas — agricultural fields, vacant lots, construction sites without tight obstacles — the Mini 3 Pro does the same job for less money.

Autel Evo Nano+: The Alternative Ecosystem

The Evo Nano+ is the non-DJI option. For some operators, that’s a selling point. Autel’s ecosystem is smaller but the hardware is competitive.

What works for mapping. The 1/1.28-inch sensor is marginally larger than DJI’s 1/1.3-inch — about a 3% increase in sensor area. Practically meaningless for mapping, but the 50MP native resolution gives you slightly more cropping flexibility. RYYB color filter array (similar to Huawei’s smartphone approach) captures more light than traditional RGGB sensors, producing cleaner low-light imagery. For mapping, this helps on overcast days or early/late flights with flat lighting.

The Evo Nano+ tracks three GNSS constellations: GPS, GLONASS, and Galileo. The DJI Minis also track three (GPS, Galileo, and BeiDou), so the Nano+ has no constellation-count advantage; GLONASS in place of BeiDou is a difference, not an upgrade. Your geotags are still 2-5 meters either way.

What limits it for mapping. Battery life is the killer. 28 minutes advertised translates to 18-20 minutes of mapping time. That’s roughly 30% less coverage per battery than the DJI options. For a 20-acre site at 60m altitude, you’re looking at 4-5 batteries instead of 3. That’s more time, more battery costs, and more opportunities for stitching artifacts between flights.

Third-party app support is thin. Litchi does not support the Evo Nano+. DroneLink does not support it. Autel’s own Explorer app handles waypoint missions, but the mapping-specific features — configurable overlap grids, terrain following, camera trigger intervals — are less mature than what Litchi offers for DJI. You can make it work, but you’re fighting the software instead of flying the mission.

Autel’s SDK is available but the developer community is a fraction of DJI’s. If something doesn’t work, your troubleshooting resources are limited. DJI forums have thousands of mapping-specific threads. Autel forums have dozens.

Verdict. The Evo Nano+ is a capable camera drone with a slightly better sensor on paper. But mapping is a software-dependent workflow, and Autel’s mapping app ecosystem is years behind DJI’s. The shorter battery life compounds the problem. If you’re already in the Autel ecosystem or have a specific reason to avoid DJI, the Nano+ works. For a first mapping drone with no ecosystem commitment, the DJI options are easier paths.

Rolling Shutter: The Uncomfortable Truth

None of these drones have a mechanical or global shutter. All three use rolling shutter CMOS sensors. For casual photography, this doesn’t matter. For photogrammetry, it introduces systematic geometric error.

Here’s what happens. The drone captures an image while moving at 11 mph (5 m/s). The rolling shutter reads the sensor top-to-bottom in roughly 10-15 milliseconds. During those milliseconds, the drone moves 5-7.5 centimeters. The top of your image was captured at a different position than the bottom. Your photogrammetry software models a frame captured at a single position — but the image contains data from a range of positions.

Modern processing software handles this. Metashape has a rolling shutter compensation model. Pix4D compensates automatically if you enable it. WebODM’s OpenSfM pipeline includes rolling shutter correction. The compensation works — it reduces the error from centimeters to sub-centimeter — but it doesn’t eliminate it entirely.

Mitigation strategies:

• Fly slower. 7 mph (3 m/s) instead of 11 mph (5 m/s). Less drone movement per shutter read cycle means less distortion per image.
• Force faster shutter speeds. 1/1600s or faster in bright conditions. This cuts motion blur within each row. It does not speed up the rolling-shutter readout, which is set by the sensor and photo mode, not by exposure time, so it does not reduce rolling-shutter skew; slower flight and stop-and-capture do that.
• Use stop-and-capture mode. Some mission planning apps can pause the drone at each photo point, capture a stationary image, then resume flight. Eliminates rolling shutter distortion entirely but doubles your mission time and battery consumption.
• Increase overlap. 85% frontal, 75% side overlap gives the software more redundant observations to average out rolling shutter artifacts.

The bottom line: rolling shutter on consumer drones is a known limitation with known workarounds. It does not disqualify these drones from mapping work. It does mean you need to fly deliberately and process carefully.

App Support for Automated Mapping Missions

Manual flying doesn’t work for mapping. You need automated grid patterns with consistent overlap, altitude, and camera trigger timing. Here’s what’s available.

DJI Fly (Mini 4 Pro and Mini 3 Pro) Built-in waypoint mode handles basic flight paths. You can set altitude, speed, and camera actions at each waypoint. For mapping, you’d manually create a grid pattern — doable but tedious. No automatic overlap calculation, no terrain following, no estimated coverage display. It works in a pinch.

Litchi / Litchi Pilot ($25 one-time for Litchi; Litchi Pilot priced separately) The standard for consumer DJI mapping missions. Grid pattern generator with configurable frontal and side overlap percentages. Terrain following using elevation data. Camera trigger at distance or time intervals. Mission planning on a desktop with Google Earth overlay, then sync to the controller. Litchi supports the Mini 3 Pro; the Mini 4 Pro is supported only by Litchi Pilot, a separate app from the same developer. Neither supports Autel.

DroneLink (free tier available, $30/month for Pro) Similar to Litchi with more advanced features: adaptive overlap based on altitude, multi-battery mission planning, real-time GSD calculator. Supports both DJI Mini platforms. Does not support Autel.

Autel Explorer (free with drone) Autel’s native app includes waypoint missions and basic grid patterns. Functional but less polished than Litchi. Limited overlap configuration options. No third-party mission planning integration.

DJI Fly Mission Hub (web-based) Plan waypoint missions in a browser, sync to DJI Fly app. Useful for pre-planning complex flights but not mapping-specific.

For mapping workflow, Litchi (Mini 3 Pro) or Litchi Pilot (Mini 4 Pro) is the proven combination. It’s what most consumer drone mappers use, and for good reason — it works reliably with minimal setup.

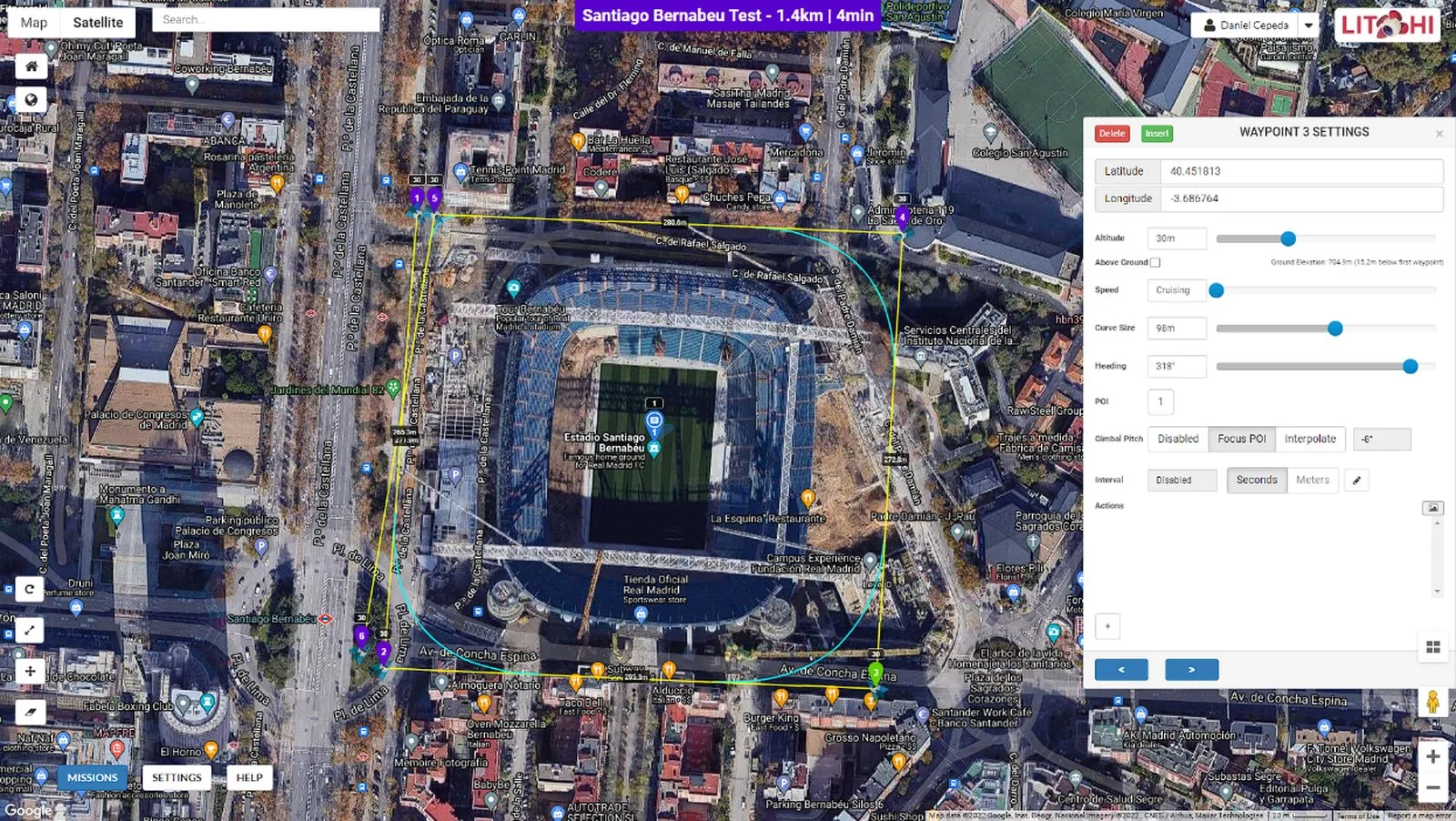

Screenshot: Litchi Mission Hub (flylitchi.com)

Recommended Accessories for Mapping

You can’t map with just a drone. Here’s what you need in your kit.

Ground Control Points (GCPs). For any project requiring better than 2-meter accuracy — which is every mapping project — you need GCPs. Pre-made targets from Propeller, AeroPoints, or simple checkerboard panels (12x12 inches minimum, high contrast) placed at surveyed coordinates. Budget 5-8 per site. You can make your own from corrugated plastic and spray paint for under $5 each. Survey them with a handheld GNSS receiver or total station.

MicroSD cards. Samsung EVO Plus 128GB ($12-15) or SanDisk Extreme 128GB ($14-18). UHS-I, V30 rated minimum. The drone writes 12MP images at roughly 8-12MB each (RAW+JPEG). A 128GB card holds 5,000+ mapping images — more than enough for a full day. Carry two. Cards fail. Format before every job.

Tablet mount and sun shade. If you’re using the RC-N1 controller with a phone, a proper tablet mount (8-10 inch tablet) gives you a usable display for monitoring missions. The Freewell or PGYTECH tablet holders work with DJI controllers. A sun shade is mandatory — you can’t see a phone screen at noon in July.

Extra batteries. Three batteries minimum for mapping. The Fly More Combo gets you there for the DJI platforms. For the Evo Nano+, budget four batteries given the shorter flight time. Intelligent Flight Batteries for the Mini 4 Pro run $55 each. Mini 3 Pro batteries are the same price and cross-compatible. Autel Nano+ batteries run $65 each.

Landing pad. A 50-75cm foldable landing pad keeps dust and debris off the camera lens during takeoff and landing. $15-25 on Amazon. Not optional on dirt or gravel sites — one grain of sand on the lens ruins your dataset.

ND filters. For bright conditions, an ND8 or ND16 filter lets you force a specific shutter speed without overexposure. PolarPro, Freewell, and PGYTECH all make filter sets for these drones ($30-60 per set). For mapping, you want the fastest possible shutter speed to minimize rolling shutter — ND filters help you get there in bright conditions without blowing out highlights.

Accuracy: What to Realistically Expect

Let me be direct about accuracy expectations with consumer drones.

Without GCPs: 2-5 meter absolute horizontal accuracy, 3-8 meter vertical. This is GPS geotag accuracy. Your orthomosaic will look good — features will be internally consistent — but the entire dataset could be shifted meters from its true position. Fine for visual reference. Not fine for measurement.

With GCPs (5-8 well-distributed): 3-10 centimeter horizontal, 5-15 centimeter vertical. This is where consumer drones become genuinely useful for mapping work. The GCPs anchor your dataset to real-world coordinates and the photogrammetric bundle adjustment tightens everything up. Mini 4 Pro datasets with 6 GCPs and 80/70 overlap at 60 meters AGL consistently land in the 5-8 cm horizontal RMSE range.

With GCPs and optimal flight parameters: 2-5 centimeter horizontal is achievable if you fly slow (7 mph, 3 m/s), use stop-and-capture, shoot at 80/75 overlap, and place 8 GCPs on a site under 10 acres. At that point, you’re spending 3x the flight time compared to a standard mission, but the accuracy approaches what RTK drones deliver without corrections.

The honest comparison. DJI rates an RTK-equipped Matrice 350 with the Zenmuse P1 at 3 cm horizontal and 5 cm vertical absolute accuracy without GCPs (mapping mission at 3 cm GSD). A consumer Mini 4 Pro with 6 GCPs achieves 5-8 centimeters horizontal. That’s roughly a 2-3x horizontal accuracy gap, and the P1 closes it without any ground control. For survey-grade deliverables, the professional platform wins. For site documentation, progress monitoring, volumetric estimates, vegetation mapping, and preliminary design — consumer drone accuracy is sufficient.

Which Drone Should You Buy?

Buy the DJI Mini 4 Pro if you want the best overall mapping platform of the three in this guide. Best obstacle avoidance, best transmission, best third-party app support, and the longest effective mapping time (tied with the Mini 3 Pro). It’s $150 more than the Mini 3 Pro and worth every dollar for the omnidirectional sensors alone — mapping flights near structures are significantly less stressful.

Buy the DJI Mini 3 Pro if you’re budget-conscious and primarily mapping open areas. Same sensor, same image quality, same mapping software compatibility. Save the $150 (buying remaining stock or used, since DJI has discontinued it) and put it toward extra batteries or GCP targets. Just make sure it comes with the RC-N1 (or an RC Pro), not the DJI RC screen controller, which can’t run Litchi or DroneLink.

Buy the Autel Evo Nano+ if you’re committed to the Autel ecosystem or have a specific reason to avoid DJI. Be prepared to spend more time fighting mapping software and carrying extra batteries.

Don’t buy any of these if you need survey-grade accuracy without GCPs, need to fly sites larger than 30 acres regularly, or need a mechanical shutter for high-speed mapping. For those use cases, you’re looking at the Phantom 4 RTK (used market), DJI Mavic 3 Enterprise, or stepping up to the Matrice platform.

Consumer drones can map. Not at survey-grade accuracy, not without ground control, and not without understanding their limitations — but they produce usable data for a wide range of professional applications at a fraction of the cost of enterprise platforms.

Of these three, the DJI Mini 4 Pro is the best consumer mapping drone in 2026. The Mini 3 Pro is the smart budget pick. The Autel Evo Nano+ is a capable alternative with ecosystem limitations.

All three share the same fundamental constraint: rolling shutter and single-frequency GPS. Work within those constraints — fly slow, use GCPs, process carefully — and these sub-250g drones produce mapping data that would have required a $15,000 platform five years ago.

That’s not marketing. That’s field-tested reality.
